Centrifugal Pump Test Rig

Centrifugal Pump Test Rig
Centrifugal Pump Test Rig
Send Inquiry
Product Code : RLHM-108
Brand Name : Reliant Lab
Product Description

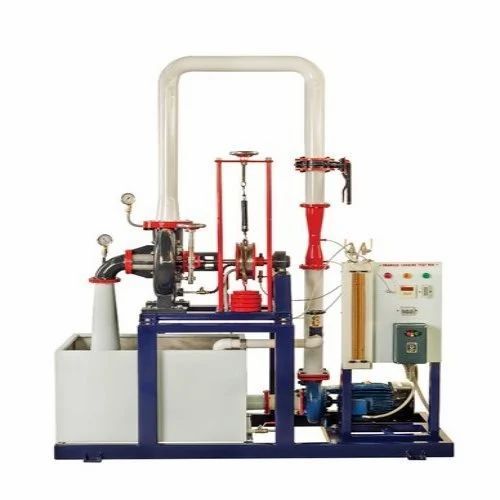

The present Centrifugal Pump Test Rig is a self-contained unit operated on closed circuit basis containing a sump tank. The set-up consists of a Centrifugal pump coupled with an AC Motor. Flow of water is measured by using measuring tank and stopwatch. Vacuum gauge is fitted on suction line and Pressure gauge is fitted on delivery line to measure the pressure.


To determine total head, overall efficiency and pump efficiency of the centrifugal pump.

To plot Head vs Discharge, Pump efficiency vs Discharge.


Electricity supply: Single phase, 220V AC, 50 Hz, 5-15 amp combined socket with earth connection. Earth voltage should be less than 5 volts.  Water Supply (Initial fill)

Floor Drain

Floor Area: 2.0 m x 1.0 m
