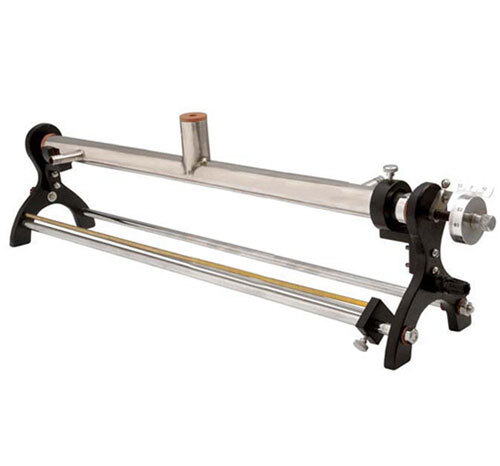

Coefficient of Linear Expansion Apparatus (Horizontal Type) with Spherometer Brass, Iron & Nickel Rods

Product Description

This Coefficient of Linear Expansion Apparatus (Horizontal Type) is a precision laboratory setup used to determine the thermal expansion of solids, especially metals, with high accuracy. The apparatus includes a speedometer dial gauge for measuring minute elongation during heating and comes with three interchangeable metal rods “ Brass (Nickel-plated for corrosion resistance), Iron, and another standard rod “ each 50 cm long.

The setup features a long horizontal heating pipe, suitable for uniform steam or hot water distribution across the rod. It is ideal for use in physics and engineering laboratories to study the linear thermal expansion coefficient () of different materials.

This version comes with superior-quality components, including a nickel-plated brass pipe for improved durability, finish, and performance.

… Technical Specifications:

• Type: Horizontal Linear Expansion Apparatus

• Measuring Gauge: Precision Speedometer Type Dial Gauge (Least Count: 0.01 mm)

• Rod Materials:

  • Brass (nickel-plated)

  • Iron

  • Aluminum / Copper (as per availability)

• Rod Length: 50 cm each

• Heating Jacket:

  • Long iron heating pipe for uniform thermal application

  • Superior quality brass pipe with nickel finish for corrosion resistance

• Base: Sturdy metal or wooden base with rod clamps

• Connections: Steam inlet and outlet nozzles with rubber tubing

• Thermometer: Optional glass thermometer for temperature monitoring

• Application: To calculate = (ΔL / LΔT) for different metals

… Key Features:

• Horizontal layout ensures even heating along the rod

• Speedometer-type dial gauge for accurate elongation measurement

• Supplied with 3 metal rods for comparison of different materials

• Superior brass pipe with nickel plating enhances longevity

• Ideal for practical demonstration in schools, colleges, and research labs

• Easy to operate and maintain
