Travelling Microscope

Product Description

Travelling Microscope “ Precision Measurement Instrument

Product Description:
A Travelling Microscope is a precise measuring instrument used for accurate length measurements in physics and engineering laboratories. It is widely used for optical bench experiments, refractive index studies, and small linear displacement measurements.

Technical Specifications:

• Type: Vernier Type Travelling Microscope
• Material: Heavy-duty cast iron base with a stable tripod stand
• Optical System: Achromatic optical system for clear and sharp image resolution
• Magnification: 10X (Eyepiece)
• Focusing Mechanism: Rack and pinion fine adjustment
• Micrometer Scale: Stainless steel scale with a least count of 0.01mm
• Horizontal Movement: 150mm “ 200mm range
• Vertical Movement: 100mm “ 150mm range
• Vernier Scale Accuracy: 0.01mm (10 microns)
• Eyepiece Crossline: Provided for precise measurements
• Stage Platform: Polished metal or glass platform for sample placement
• Base Construction: Cast iron with leveling screws for stability
• Mounting: Smooth sliding carriage with locking screw
• Finish: Powder-coated or enamel-painted for rust resistance
• Usage: Suitable for physics laboratories, research labs, and industrial measurements
• Accessories Included:
  • Eyepiece with crosshair
  • Measuring scale
  • Instruction manual
  • Dust cover for protection
  •

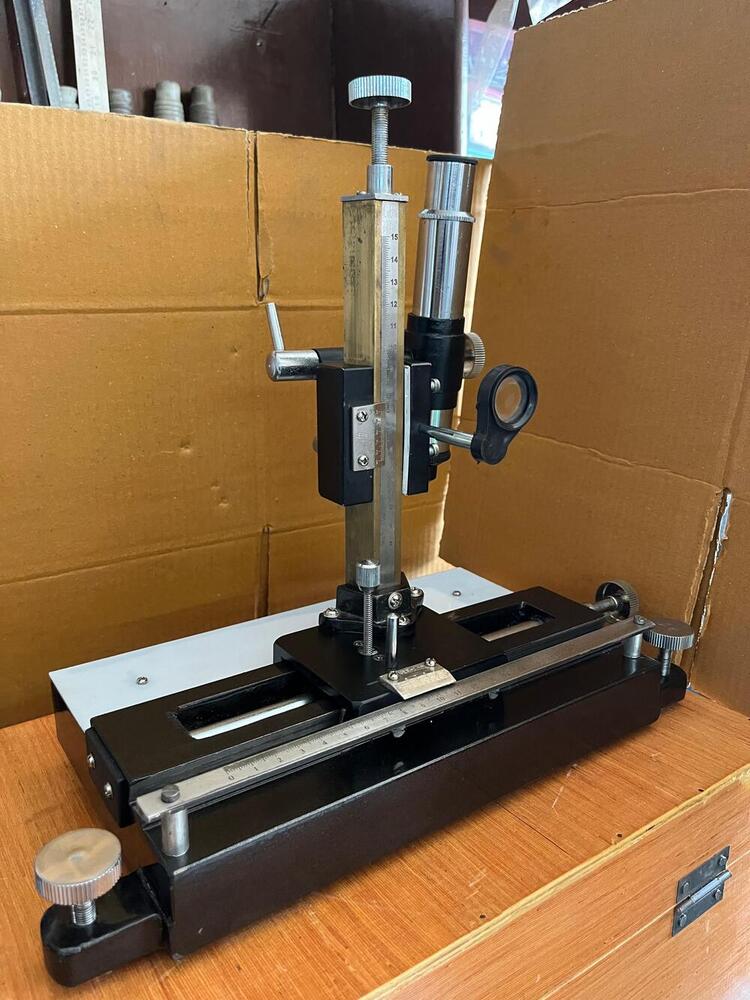

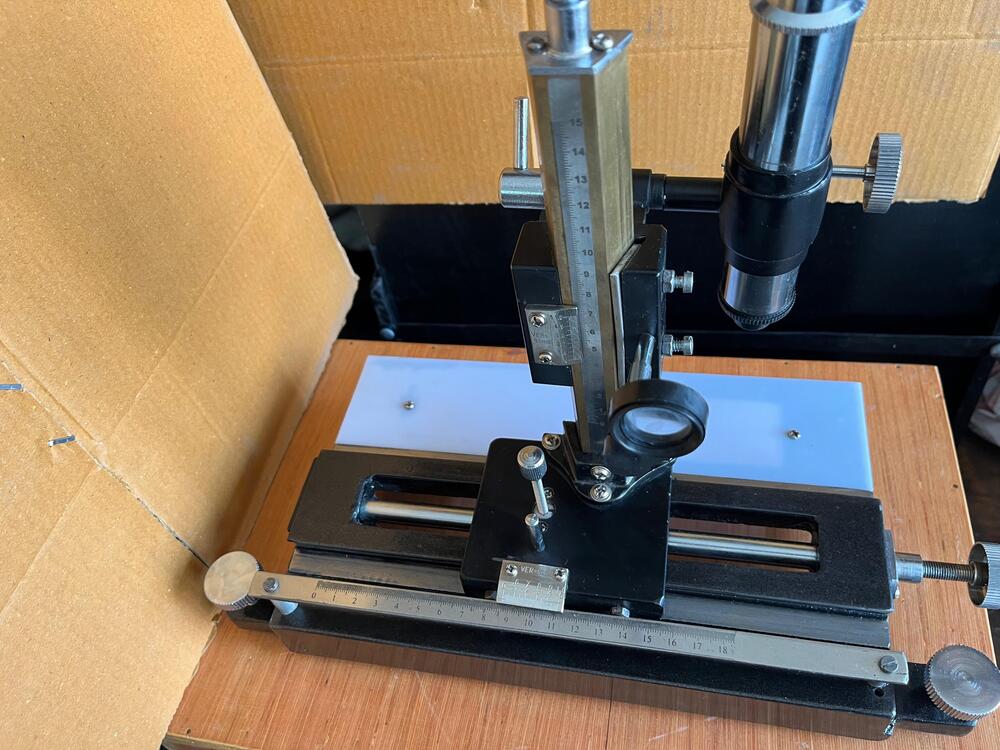

Travelling Microscope

With horizontal and vertical scales. The bed is of cast iron and accurately machined. The horizontal carriage is machined and inters ground on the guide ways of the horizontal bed. The carriage is fitted with vertical brass pillar carrying a microscope tube on a ground fitted vertical carriage. The base is fitting with two levelling screws Horizontal scale is 20cms and vertical 15cms. Long. Both the horizontal scale and vertical carriages are provided with slow motions, which travels app. 3cms in one traverse. Microscope tube is provided with rack & pinion. A milk white Perspex platform is provided on the horizontal bed. Vernier constant 0.001cms. Complete in well-polished wooden case.Having stainless steel scale.
