Looses Due to Friction in Pipelines

Product Description

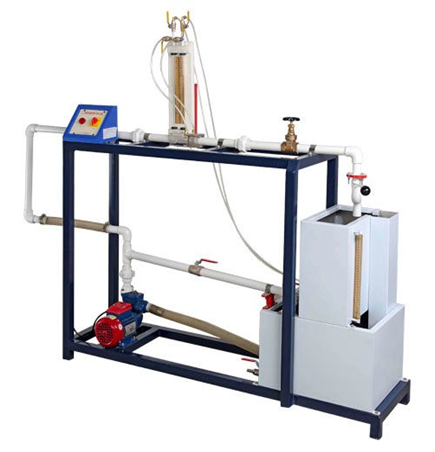

The setup consists of 2 pipes of different diameters, which are connected in parallel.

 Pressure tapings are provided on each pipe to measure the pressure losses with the help

 of a Differential Manometer. Control valves are fitted on each pipe, which enables to use

 one pipe at a time for experiment. Present set-up is self-contained water re-circulating unit,

 provided with a sump tank and a centrifugal pump etc. Flow control valve and by-pass valve

 are fitted in water line to conduct the experiment on different flow rates. Flow rate of

is measured with the help of measuring tank and stop watch.
